Description
Sold Individually

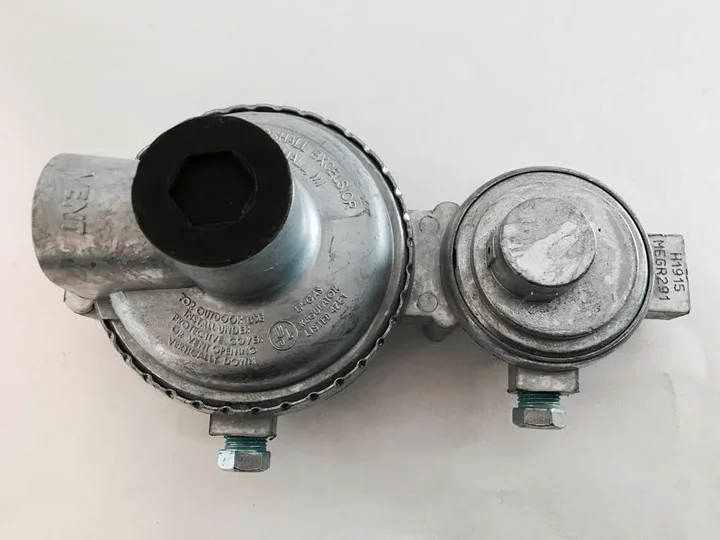

This two stage regulator is approved for use in portable applications, indoor and outdoor cooking appliances utilizing low pressure.
The regulator features all-zinc body construction, high and low 1/8″ NPT pressure tap ports, an integral drip lip vent and optional 90° vent location.
This series two-stage regulator meets RVIA, UL and NFPA test requirements.
Max. inlet pressure : 250 PSI
Inlet connection: 1/4″ FNPT
Outlet connection: 3/8″ FNPT
Vent 90° vent
BTU/hr 175,000
Exterior finish: raw zinc
Diaphragm: fabric reinforced molded with O-ring bonnet/body seal.
Diaphragm Type: internal relief – spring loaded
Bonnet/body material: die-cast zinc
Listing UP listed/UL 144
Mounting holes 3 1/2″ on center
Pressure taps: 1/8″ FNPT plugged
Please check your owner’s manual to make sure this part will work with your grill or appliance
