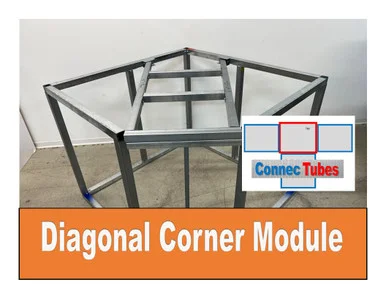

Diagonal Corner Module with Sink/Countertop Support Kit

Description

Sale

Diagonal Corner Module with Sink/Countertop Support Kit for outdoor kitchens

reg price $599.98  Sale $329.22

IN STOCK! (Ships in 1-3 Business Days)

This is our famous 32″ Diagonal Corner module used for large L or U Island Outdoor Kitchen Designs.

This is a big module and is best for large patios only.

The front diagonal is approx 18 3/4″ and best fits a 14×20 vertical door to access plumbing for sink or egg soot opening.

MEASUREMENTS

45 3/4 x 45 3/4″ on the 2 rear sides

31 1/2″ one the 2 ends where straight modules will connect

35″ Height

Includes:

4ea Length Tubes 43 3/4″ x 25mm (Red paint)

4ea Length Tubes 30 3/4″ x 25mm (Red paint)

2ea 21mm Diagonal Front Tubes

9ea Vertical Tubes (Yellow paint) (2 of these VT are for a door at the angle)

6ea 3 way corner couplers

10ea One Way Couplers (Standard with both wings)

4ea One Way Couplers (For tight spaces with one wing)

Sink / Countertop Kit for Outdoor Kitchen Diagonal Corner Module

2ea 45 Degree Couplers

6ea one way couplers

2ea 4ft x 25mm tubes

2 each CTT

Not Included: Actual outdoor kitchen appliances, cement board, screws, vents, leveling feet , etc…

It does not include the egg smoker platform to support an outdoor kitchen smoker. (sold separate)
