Firegear DIY Fire Pit Kit – Square

Description

Do you dream of having a cozy stone or brick fire pit in your backyard, but find the thought of building it yourself intimidating?

Settling for just any other fire pit will disappoint you. But if you do build one yourself, will you really enjoy a smokey fire that’s difficult to manage?

DIY the fire pit you’ve always dreamt of with the Firegear DIY Fire Pit Kit. With everything you need to build your own square gas fire pit, including a stainless steel flat disc, natural gas burner, flex frame, vent kit, control panel kit, and lava rocks, it takes the guesswork out of creating a stunning fire pit. See this diagram to see how it’s set up.

Featuring Firegear’s Match Lit Ignition System, there is absolutely no hassle lighting your gas fire pit. It’s the most popular type of ignition system, and it produces taller and hotter flames than Electronic and Battery-Operated Spark Ignitions.

Add a personal touch to your fire pit by choosing to decorate it with lava rocks, stones, fire glass, or a stylish combination of two media. This guide specifies how much you’ll need. And with Stainless Steel Construction, you won’t have to worry about rust, ensuring many years of outdoor use.

Don’t let your dream fire pit go up in smoke! Order the Firegear DIY Fire Pit Kit today, and enjoy free shipping on us!

What’s Included: Spur Burner, Stainless Steel Square Plate, 44″ Flexframe, Vent with Lintel, Control Panel Kit, Lava Rocks, and User’s Manual

Lead Time: 2-3 weeks.

Firegear DIY Square Fire Pit Kit Videos:

Features:

• DIY Square Fire Pit Kit, great for building your own gas fire pit
• Features a Natural Gas Burner for clean-burning and easily lit flames
• Conversion Kit available to use with propane
• 3 size options to fit your customized fire pit: 25″, 30″, and 34″ Wide Plate
• Stainless Steel Construction has extreme corrosion resistance
• Flex Frame adds protection against the elements, even in saltwater environments
• Includes 2 Vents with Lintel, each vent provides 18 sq. in. of ventilation
• Match Lit Ignition – easy to light using a lighter and produces more heat and taller flames than TPSI/AWEIS
• Adjust the flames with ease by turning the knob
• Max Heat Output:
• 25″ Model: 119,000 BTU
• 30″ Model: 119,000 BTU
• 34″ Model: 175,000 BTU
• Burner:
• 25″ Model: 22″ Spur
• 30″ Model: 22″ Spur
• 34″ Model: 31″ Spur
• Pan Dimensions:
• 25″ Model: 25″ L x 25″ W
• 30″ Model: 30″ L x 30″ W
• 34″ Model: 34″ L x 34″ W
• Maximum Installation Opening:
• 25″ Model: 24″
• 30″ Model: 29″
• 34″ Model: 33″
• Weight:
• 25″ Model: 74 lbs
• 30″ Model: 76 lbs
• 5-Year Residential Warranty
• 1-Year Commercial Warranty
• Made in the USA

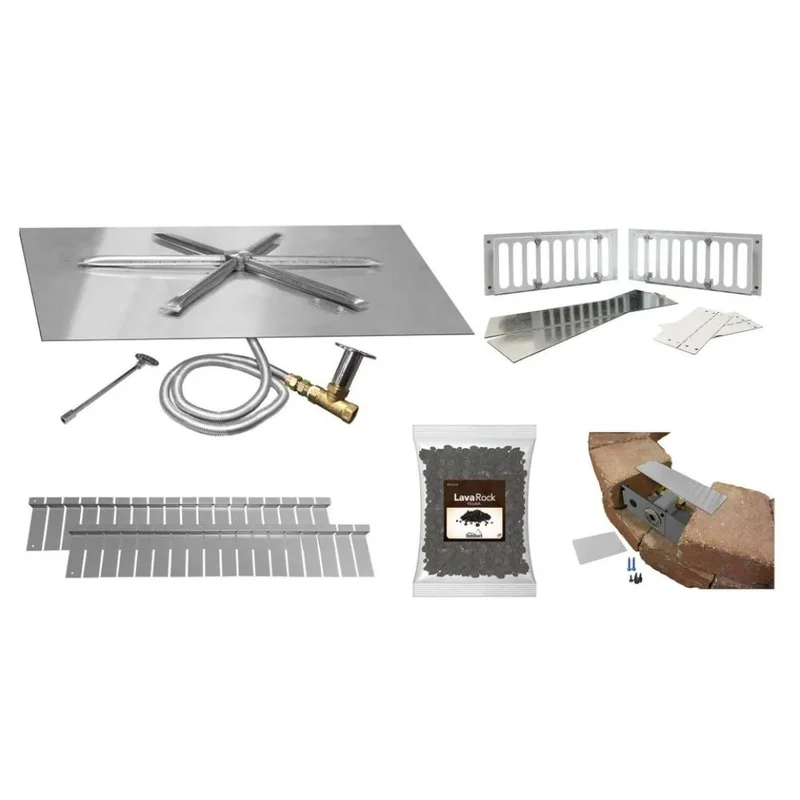

What’s in the Box:

• Spur Burner – 1 pc.
• Stainless Steel Square Plate – 1 pc.
• 44″ Flexframe – 2 pcs.
• Vent with Lintel – 2 pcs.
• Control Panel Kit – 1 pc.
• Lava Rocks – 30 or 40 lbs
• User’s Manual

Downloads:

Recommendations:

Fire pits require 18 sq in per side or 36 sq in overall ventilation at its base to avoid moisture.

A licensed technician must ensure that an adequate gas line is installed outside for natural gas models. An undersized line may reduce the performance of the fire pit.
